Bluetooth Low Energy

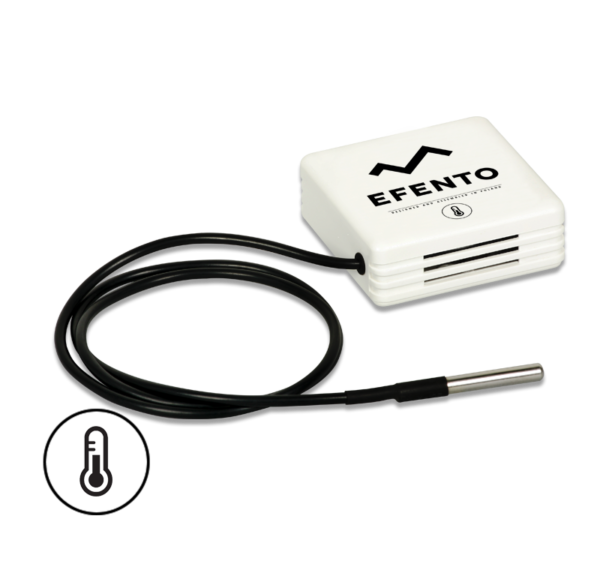

Temperature logger with external probe
Wireless temperature loggers measure and transmit temperature over Bluetooth Low Energy. You can use a free mobile application to configure the device and read the data from its memory. If you add Efento Gateway, you can build a remote temperature monitoring system for objects which need supervision such as medical refrigerators or pharmaceutical warehouses. The logger is equipped with an external, waterproof probe.
- Temperature: -55 to +125°C, accuracy: up to 0.5°C in the range from -10°C to +85°C and up to 2°C in the range -55 to -125°C
- Sensor is equipped with 1 m long external probe
- Measurement period: 1 minute – 10 days (configurable by the user)
- The device stores 40,000 measurements in its memory, when the memory is full, the oldest measurements are overwritten
- Battery ensures up to 5 years of maintenance-free operation
- Add Efento Gateway and Efento Cloud to build a real time monitoring system. The maximum distance between the sensor and the Gateway is 100 m in the open space and 20 – 30 m in the buildings
- Use a free mobile application to configure the logger, read the data from its memory, generate reports and set alert thresholds
Key features
Efento Cloud
Together with Efento Cloud, the sensors enable constant monitoring, alerting about exceeding safe limits, generating reports and analyzes.
Long battery life
Loggers have been designed to work for up to 5 years on battery. You can forget about changing the battery frequently or troublesome battery charging.
Lower costs
Choosing wireless sensors and a cloud platform reduces the installation and maintenance costs.
Wide range of sensors
Efento sensors can measure various physical and chemical values. If you decide on one sensor today, you can expand your sensors fleet to another types anytime you want.
Integration
Standard communication protocols allow integration with any cloud platform or mobile application.
Easy set up
All you need to set up a logger is a smartphone with a free mobile application. The whole configuration takes no more than 15 minutes.Calibration certificate
At the customer’s request, each Efento sensor can be supplied with a calibration certificate in accordance with ISO / IEC 17025. The test is performed in an external, ILAC certified laboratory.Sensor’s passport
Sensor’s passport documents the entire lifecycle of a device. By accessing the data on Efento Cloud platform, the user can check all information about the sensor: date of sale, warranty status, date of calibration, information on all service activities. In addition, the user can download all documents regarding the device – a duplicate of calibration certificate or service protocols.Integration
We believe that the Internet of Things is about integrating data sources, analysing the data and drawing conclusions based on it. If you want to integrate Efento loggers with your software, cloud platform or mobile application, we will provide you with the necessary documentation, libraries, SDKs and we will gladly assist you.
| TEMPERATURE SENSOR | Range: -55 to +125°C Accuracy up to 0.5°C in the range from -10°C to +85°C and up to 2°C in the range -55 to -125°C Resolution: 0.1°C Drift: <0.1°C / year Memory size: 40 000 measurements Measurement interval: 1 minute to 10 days, (configurable by the user) |
|---|---|
| RADIO MODULE | Communication: Bluetooth Low Energy (BLE) Radio frequency: 2,4 GHz Power: 2,5 mW (4 dBm) Range: up to 100 m (LOS) Communication standard: Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0) Transmission frequency: 1 s |
| BATTERY | Battery: 3,6 V, size AA, capacity 2 700 mAh (replaceable) Battery operating time: at least 5 years (measurement interval: 15 min) |
| DIMENSIONS | 20 x 45 x 85 mm Weight: 0,075 kg |
Case studies
Implementation of Efento Cloud temperature and humidity monitoring system
Hospital pharmacy uses Efento Cloud for monitoring temperature and humidity in refrigerators and rooms where medical products are stored.
Archives of the Jagiellonian University
The Archives of the Jagiellonian University are one of the oldest and largest university archives in the world. Efento loggers measure temperature and humidity, ensuring control over the proper storage conditions of exhibits.
NOT SURE YET?
Order a starter kit - $197 only
The offer is dedicated to companies only.
Check it yourself. The starter kit includes all you need to test Efento wireless sensors and Efento Cloud platform:
- Efento Gateway
- Bluetooth Low Energy temperature and humidity sensor
- Efento Cloud access
- Free shipping worldwide
