Bluetooth Low Energy

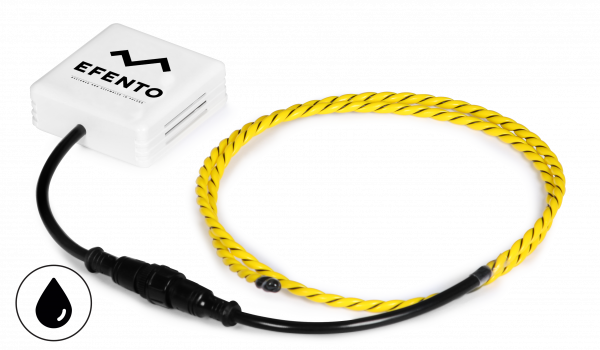

Wireless water rope logger
Wireless water rope sensors are used in places where uncontrolled leakage can cause large damage, e.g. in archives, museums, server rooms, warehouses, laboratories. They are ideal for monitoring leakage from heating devices, air conditioning systems, dishwashers, washing machines, pumps and refrigerators or freezers. The sensors are equipped with a detection cable that allows you to designate a zone monitored for leakage.
You can use a free mobile application to configure the device and read the data from its memory. If you add Efento Gateway, you can build a remote monitoring system.
- Detects the presence of a conductive liquid at any point along the entire length of the probe
- Probe length: 3m (different lengths available on request)
- Measurement period: 1 minute – 10 days (configurable by the user)
- The device stores 40,000 measurements in its memory, when the memory is full, the oldest measurements are overwritten
- Battery ensures up to 5 years of maintenance-free operation
- Add Efento Gateway and Efento Cloud to build a real time monitoring system. The maximum distance between the sensor and the Gateway is 100 m in the open space and 20 – 30 m in the buildings
- Use a free mobile application to configure the logger, read the data from its memory, generate reports and set alert thresholds
Key features
Efento Cloud
Together with Efento Cloud, the sensors enable constant monitoring, alerting about exceeding safe limits, generating reports and analyzes.
Long battery life
Loggers have been designed to work for up to 5 years on battery. You can forget about changing the battery frequently or troublesome battery charging.
Lower costs
Choosing wireless sensors and a cloud platform reduces the installation and maintenance costs.
Wide range of sensors
Efento sensors can measure various physical and chemical values. If you decide on one sensor today, you can expand your sensors fleet to another types anytime you want.
Integration
Standard communication protocols allow integration with any cloud platform or mobile application.
Easy set up
All you need to set up a logger is a smartphone with a free mobile application. The whole configuration takes no more than 15 minutes.Sensor’s passport
Sensor’s passport documents the entire lifecycle of a device. By accessing the data on Efento Cloud platform, the user can check all information about the sensor: date of sale, warranty status, date of calibration, information on all service activities. In addition, the user can download all documents regarding the device – a duplicate of calibration certificate or service protocols.Data security
Data transmitted wirelessly can be encrypted. Thanks to that, unauthorized persons cannot hijack the communication between sensors and other devices. Efento sensors' software can be updated over the air, which will allow you to easily install any security patch that is released.Integration
We believe that the Internet of Things is about integrating data sources, analysing the data and drawing conclusions based on it. If you want to integrate Efento loggers with your software, cloud platform or mobile application, we will provide you with the necessary documentation, libraries, SDKs and we will gladly assist you.
| WATER ROPE | Measurement of the presence of a conductive liquid at any point along the entire length of the probe |
|---|---|
| PROBE | Probe length: 3m (different lengths can be ordered) |
| RADIO MODULE | Communication: Bluetooth Low Energy (BLE) Radio frequency: 2,4 GHz Power: 2,5 mW (4 dBm) Range: up to 100 m (LOS) Communication standard: Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0) Transmission frequency: 1 s |
| BATTERY | Battery: 3,6 V, size AA, capacity 2 700 mAh (replaceable) Battery operating time: at least 5 years (measurement interval: 15 min) |
| DIMENSIONS | 20 x 45 x 85 mm Weight: 0,18 kg |
Case studies
Implementation of Efento Cloud temperature and humidity monitoring system
Hospital pharmacy uses Efento Cloud for monitoring temperature and humidity in refrigerators and rooms where medical products are stored.
Archives of the Jagiellonian University
The Archives of the Jagiellonian University are one of the oldest and largest university archives in the world. Efento loggers measure temperature and humidity, ensuring control over the proper storage conditions of exhibits.
Monitoring of Physical Conditions in Warehouse and production halls
Appropriate climatic conditions for storing products must be maintained in warehouses. Implementation of the Efento wireless monitoring system has allowed for constant supervision over the conditions in buildings and industrial halls.
Implementation of the Efento Inspector temperature monitoring system in University hospital
In accordance with the recommendations of the World Health Organization (WHO) and the Summary of Product Characteristics (SmPC), all vaccines should be transported and stored in stable temperature conditions between +2°C and +8°C. Installing Efento temperature monitoring system in refrigerators allows remote control and supervision of vaccines.
NOT SURE YET?
Order a starter kit - $197 only
The offer is dedicated to companies only.
Check it yourself. The starter kit includes all you need to test Efento wireless sensors and Efento Cloud platform:
- Efento Gateway
- Bluetooth Low Energy temperature and humidity sensor
- Efento Cloud access
- Free shipping worldwide
